Vent-A-Hood® Contemporary Series 36” Panel Ready Wall Mount Range Hood
At a Glance

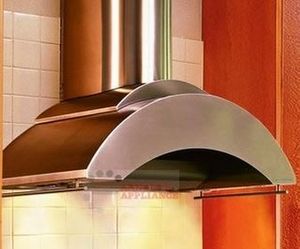

This wall mounted range hood with glass accents is designed for use over most professional-style cooking equipment. Fixed length stainless steel rail is standard on this model. Hood only available in stainless steel. Shown with matching wall mount duct cover (sold separately), available in standard sizes for 7', 8', and 9' ceiling heights or in custom sizes.
Proposition 65 Warning for California Residents
Construction
| Chimney | Fixed |
|---|
Display
| Controls | Mechanical |
|---|
Dimensions
| Max Height Above Cooktop | 30 |
|---|---|
| Min Height Above Cooktop | 30 |
Other
| Number of Lights | 4 |
|---|---|
| Air Mover Type(s) | Squirrel Cage |
| Air Mover(s) Speed | 1550 |
| Number of Air Movers | 2 |
Misc. Specs
| Width (in.) | 36 |
|---|---|
| Height (in.) | 14.37 |
| Duct Size (in.) | 8 |
| Depth (in.) | 24 |
| Collection | Contemporary Series |
| Appliance Color | Panel Ready |
| Positioning | Stationary |
| Manufacturer Warranty | 1 Year |
| Color Finish Name | Panel Ready |
| Commercial Use Approved | No |
| Range Hood Type | Wall Mounted |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 36 |
| Smart Compatible | No |
| Wifi Capable | No |
| Maximum CFM | 600 |
| Ductless Capable | No |
| Bulb Type | Halogen |
| App Capable | No |
| Heat Sensor | No |
| Charcoal Filter | No |
| Filter Indicator Light | No |
| Sones Rating | 6.5 |
| Height Above Cooktop | 30 |
| Voltage | 115 |
| Range Hood Features | Light |
Vent-A-Hood® Contemporary Series 36” Panel Ready Wall Mount Range Hood
Model #: ZTH-236 SS
At a Glance
Get to know this product.
The Unique Magic Lung®
Our patented technology keeps your kitchen running smoothly.
The patented Magic Lung® blower system sets Vent-A-Hood® apart.
You shouldn't settle for anything less than the Magic Lung® because it is quite, efficient, easy-cleaning, fire-safe, and powerful.
Vent-A-Hood's® Magic Lung® "multi-blower technology" allows CFM to double, triple, or quadruple with very little effect on sound levels.
Halogen Lights
Standard in all models. 50-watt halogen lights come with a dual switch for dimming to 25 watts. Bulbs included. For hoods 24" to 41" wide, two lights; 42" to 53" wide, three lights; 54" to 66" wide, four lights. Each island hood has four halogen lights— one in each corner.
Additional Features
600 CFM
Equivalent to 900 CFM power
Halogen lighting
Quietest hood in the industry
Available in several finish options
Mounts 30" above cooking surface
Fits 8" round duct
Available In Various Colors
Vent-A-Hood® K-Series Warranty
The warranty for Vent-A-Hood® K-Series products is one year
The warranty does not cover: freight damage, blower wheel damage, light bulbs, damage or malfunction caused by poor installation, incidental or consequential damage, commercial application, misapplication or modification of or to any part of the Vent-A-Hood® product
